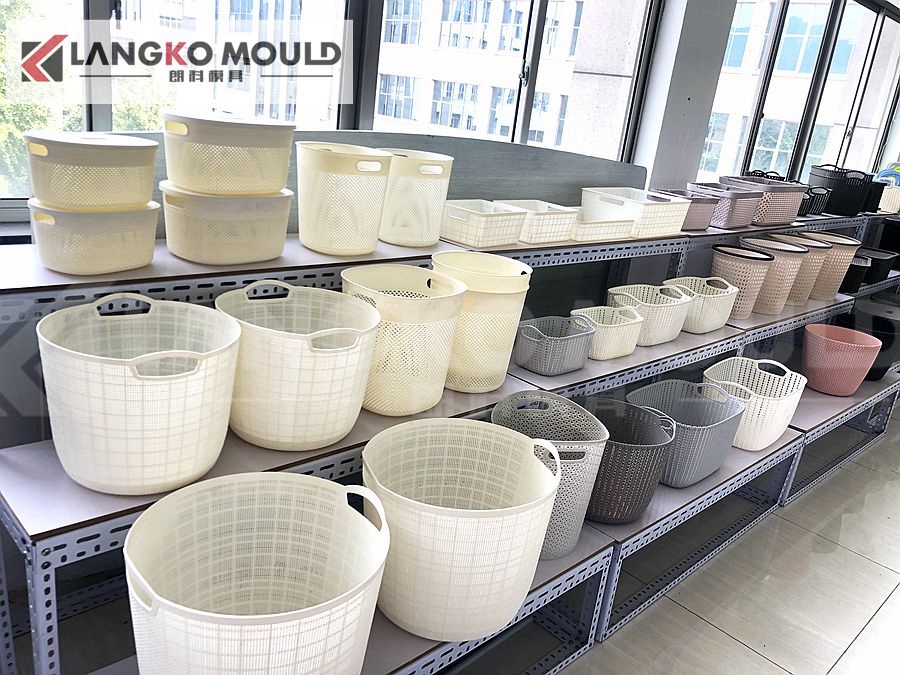

Plastic baskets and storage bins are widely used as core plastic products for daily storage, supermarket fruit & vegetable packaging, industrial turnover, and household cleaning. The key factor determining their appearance, strength, production capacity and cost is the Plastic Injection Basket Mold.

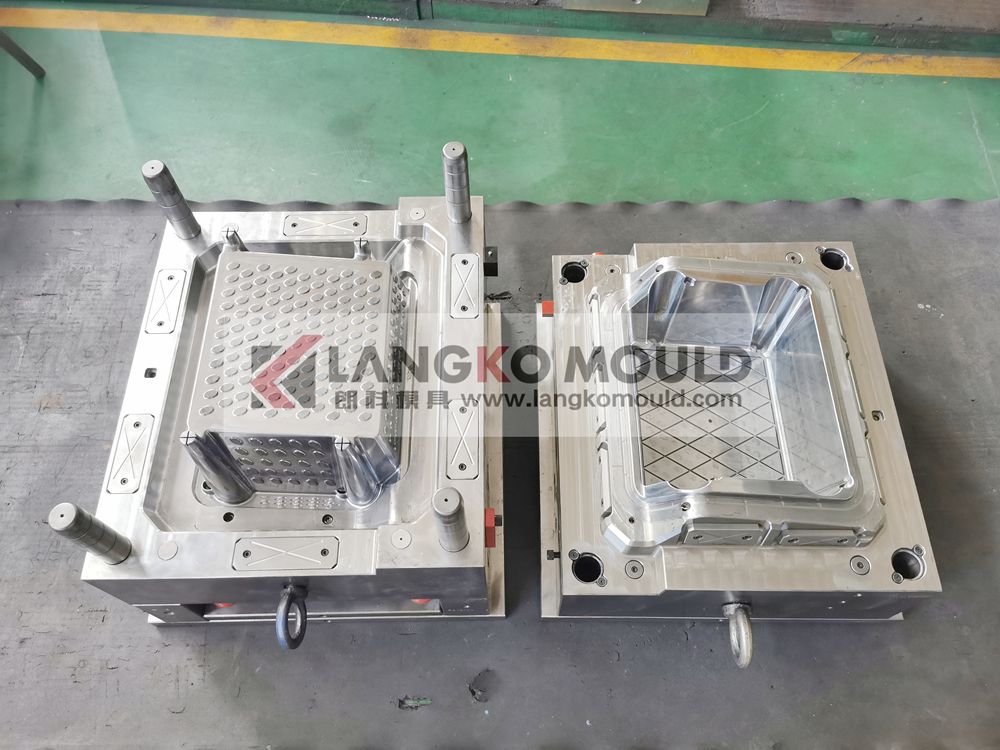

• Cavity: Forms the outer shape, appearance, texture and LOGO of the basket.
• Core: Forms the internal structure, depth, reinforcing ribs and mesh holes of the basket.

II. How are plastic baskets produced? (4-step standard injection molding process)

1. 1.Mold Closing：The plastic injection basket mold is locked under high pressure on the injection molding machine to ensure no plastic leakage and no deformation.
   2.Injection：Plastic pellets (PP/PE, etc.) are melted into fluid at high temperature, and quickly fill the entire cavity of the plastic injection basket mold through the runner and gate under high pressure.
2. 3.Cooling & Setting：The plastic injection basket mold is equipped with internal cooling channels. Cold water circulates to remove heat, allowing the plastic to solidify and set rapidly, preventing shrinkage and deformation.
3. 4. Mold Opening & Ejection：The plastic injection basket mold opens, and the ejection system (ejector pins / ejector plate / stripper plate) pushes out the finished basket smoothly, completing one production cycle.
4.

III. Why is the design of plastic injection basket mold so critical?

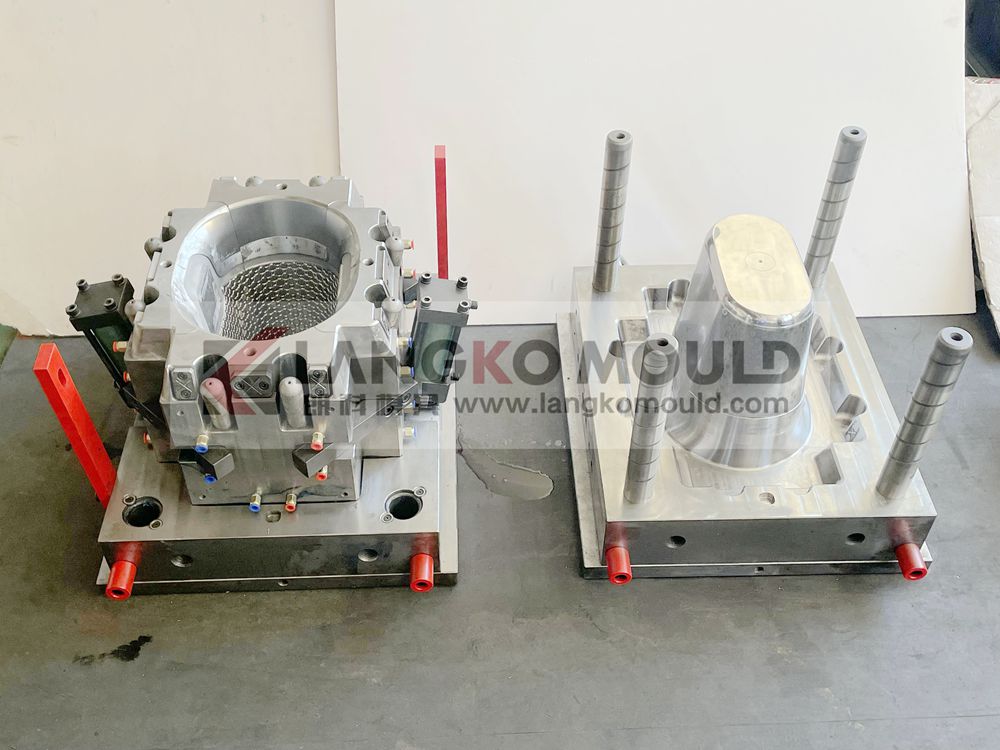

1. 1.Mesh & Structure Formation：Common mesh holes, ventilation holes, reinforcing ribs and handle positions of baskets are realized by precise structure of plastic injection basket mold. The plastic injection basket mold must be designed with reasonable molding inserts, sliders and core-pulling mechanisms to produce clear, uniform and burr-free mesh holes.
   2.Anti-deformation & Anti-shrinkage：Uneven cooling of plastic causes warping, sinking and dimensional deviation. High-quality plastic injection basket mold adopts balanced cooling channels to ensure consistent cooling speed across the cavity, stabilizing product dimensions.
2. 3. Smooth Demolding Without Scratches or Deformation：Baskets have deep side walls, undercuts and handle positions. Ordinary ejection easily causes damage. Professional plastic injection basket mold adopts:Reasonable ejection layout，Slider core-pulling structure，Angled lifters / secondary ejection to ensure smooth demolding and perfect product appearance.

4. 4. Stable Production & Short Cycle Time：Fast cooling, reasonable runners and smooth demolding of plastic injection basket mold lead to shorter cycle time and higher daily output, which is the most important benefit for factories.

IV. How to choose steel for plastic injection basket mold?

1. Small-batch / Sample Plastic Injection Basket Mold: P20
   Features: Low cost, short delivery time.
2. Mass Production Plastic Injection Basket Mold: 718H / NAK80
   Features: High hardness, wear resistance, long service life (300,000 to 500,000 cycles), ideal for long-term mass production.

Choosing a professional and stable plastic injection basket mold means lower production costs, higher product quality and stronger market competitiveness.
