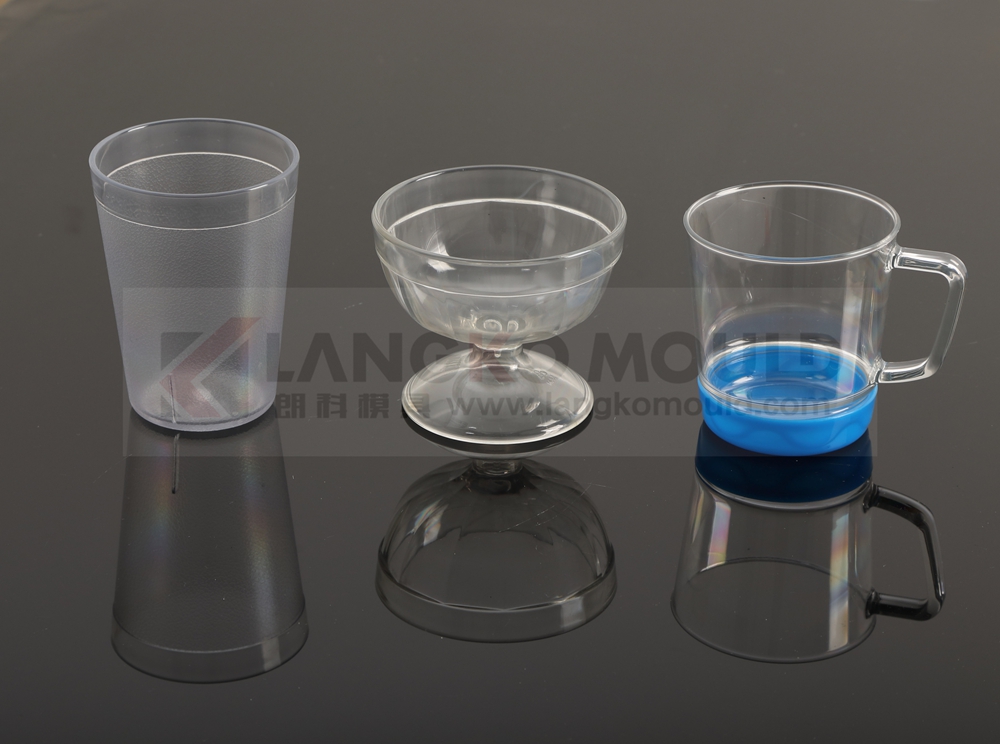

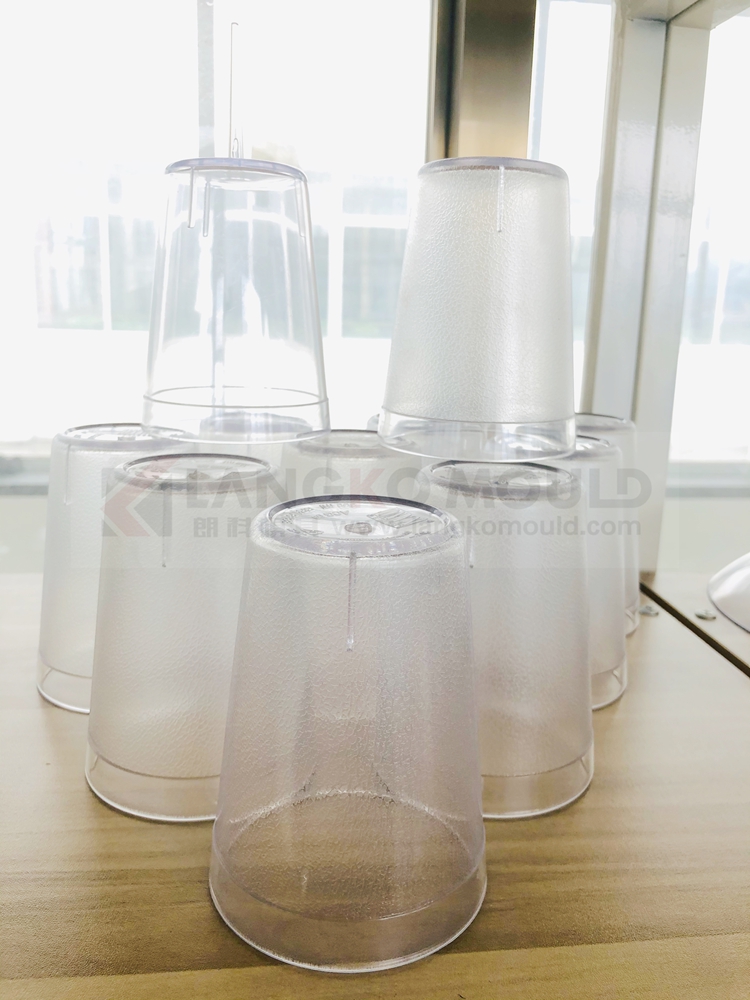

PC material cups are widely popular for their excellent transparency, impact resistance and heat resistance, and have become the first choice for packaging daily necessities and high-end beverages. The key to producing high-quality PC cups lies in the design and manufacture of molds. This article will delve into the professional knowledge of PC cup molds to help you understand the core elements of this precise manufacturing process.

PC cup molds basic structure consists of mold cavity& core, gate, runner, cooling system( water cooling lines), ejector system, guide system( guide pin,bush,etc). But Some cup outside shape is irregular or protruding, then a slider is needed.

For the PC cup molds, when you make the mold design, due to the cup thickness normally will be 0.5-5mm.This thickness is very thick, will increase the cycle time, and the PC material temperature need to be 80-120degree, so that the cooling line is very important. And to reduce the cycle time,could considered to make the BECU on the cavity or core.

For the gate, normally use hot runner, it is could save some material.

PC cup molds have extremely high requirements for surface finish. Commonly used mold steels include S136/NAK80/2344 etc. And all surface will be mirror polish.

The design and manufacture of PC cup molds is a precise technology that integrates materials science, mechanical engineering and thermodynamics. Only by thoroughly understanding the characteristics of PC material and the requirements of injection molding process can efficient and durable high-quality molds be designed. With the advancement of technology, PC cup molds are evolving towards greater intelligence and efficiency, bringing new possibilities to the plastic packaging industry.

Langko mould is good at different kinds of plastic injection PC cup molds making and designing. If you have any interests, pls feel free to contact us.
