7L fine craftsmanship laundry bucket mold

栏目：MOULD BLOG 发布时间：2024-04-18

Hello my friends,Thanks for visiting this blog,if you interested in laundry bucket mold,pls continue reading
I. Overview

The injection laundry bucket mold is a high-precision, high-efficiency production tool that uses injection molding technology to create laundry buckets with specific shapes and sizes by precisely controlling the injection, cooling, and solidification processes of plastic. This kind of mold has the advantages of stable structure, strong durability and high production efficiency, and is widely used in daily necessities manufacturing industry.

2. Structural composition

The injection laundry bucket mold usually consists of two parts: a movable mold and a fixed mold. The movable mold is installed on the moving template of the injection molding machine, and the fixed mold is installed on the fixed template. During injection molding, the movable mold and the fixed mold are closed to form the pouring system and cavity, and when the mold is opened, they are separated to take out the formed laundry bucket.

3. LangKo laundry bucket mold

LangKo has 17 years of laundry bucket mold manufacturing experience, and our laundry bucket mold received many praise from customers, because every detail of this laundry bucket mold has been carefully designed and produced to ensure the perfect presentation of the product. We provide high quality and fast delivery of molds, and thoughtful after-sales service.

Click on the picture to watch the laundry bucket test video.

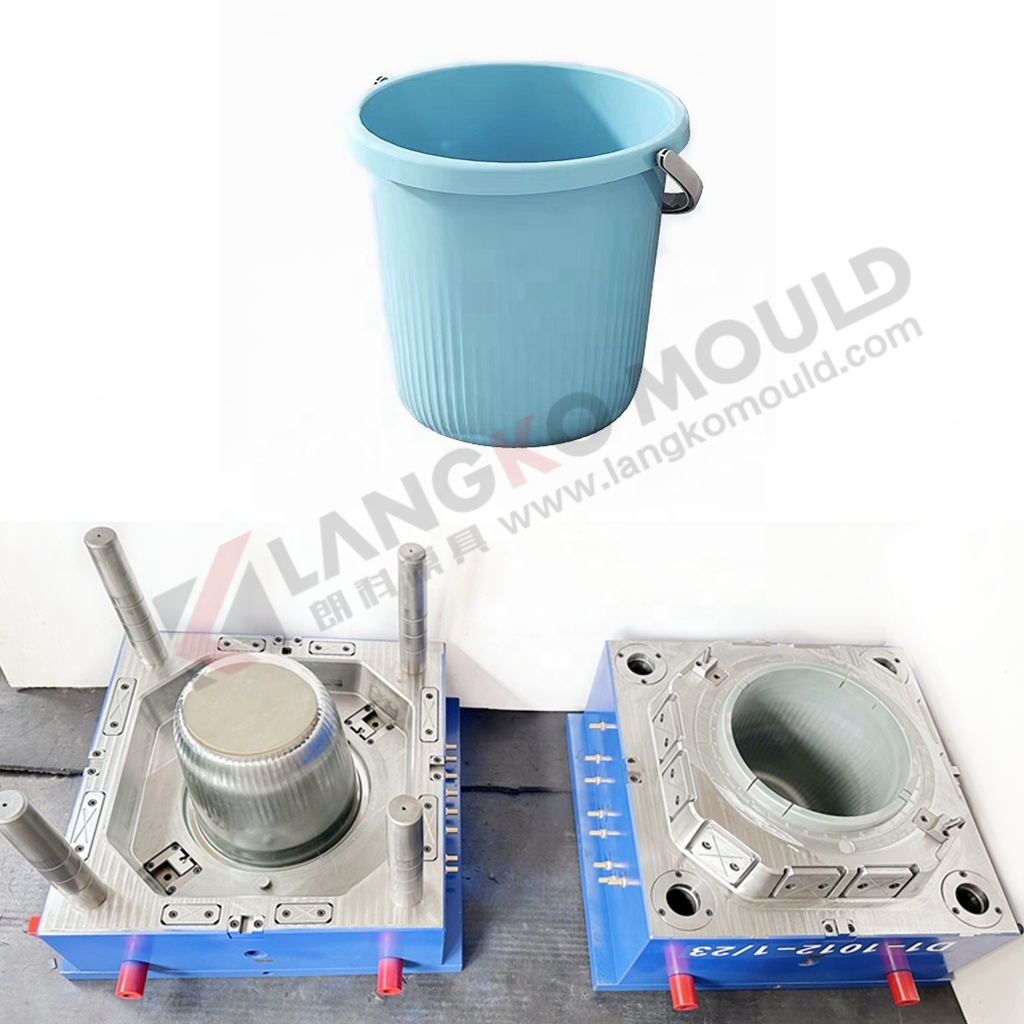

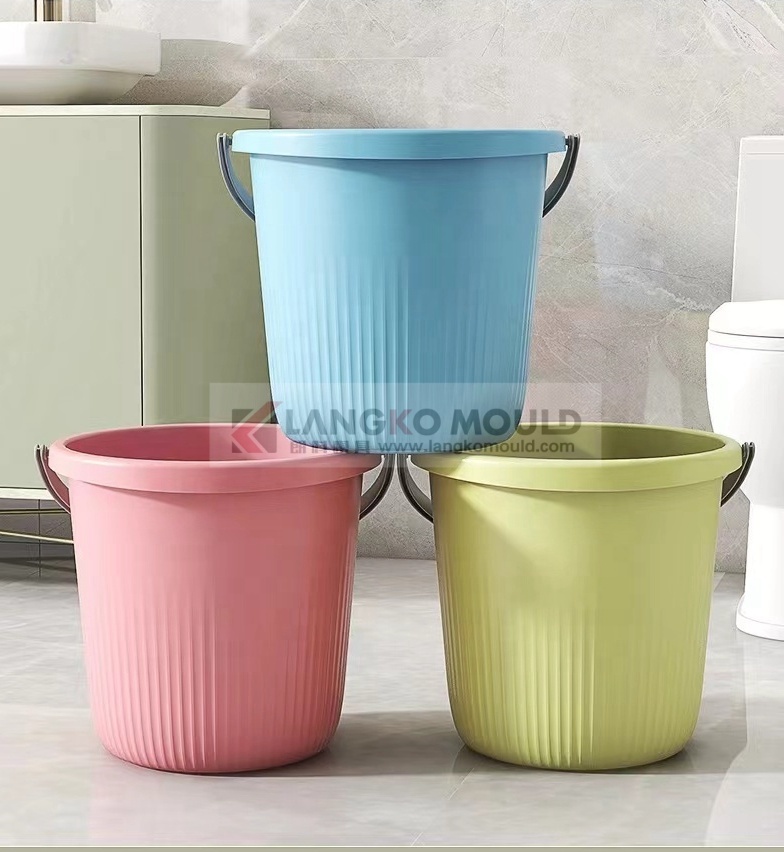

7L laundry bucket mold

Part material: HOMO PP
Mold steel: P20, 718H
Mold size: 570*590*450mm
Mold weight: 886KG
Injection system:cold runner insulation gate
Shot cycle time: 30s
Ejection system: ejector pin，air ejector，center ejector，stripper plate

Ejector pin:The ejector pin is used to eject the product from the mold cavity. Ejection principle: The external force for
ejection comes from the injection molding machine.The push rod of the injection molding machine pushes the ejector
plate, and the ejector plate drives the ejector pin to push the product out.
Air ejector:Using air valve control and the principle of air diffusion, the product can fall off in an instant to achieve
an automated effect.In a closed vacuum state,it is easier to use an air ejector relative to the ejector pin.
Center ejector:It can be used together with the air ejector. When the air enters the sealed space, use the ejector rod
to push it out.
Stripper plate:Scope of application: thin-walled products and some products that do not allow traces of ejector pins.
The push-out force is even, the ejection is stable, and the plastic products are not easy to deform and crack.
