Plastic Ice Cream Cup injection mould
栏目：MOULD BLOG 发布时间：2016-07-30

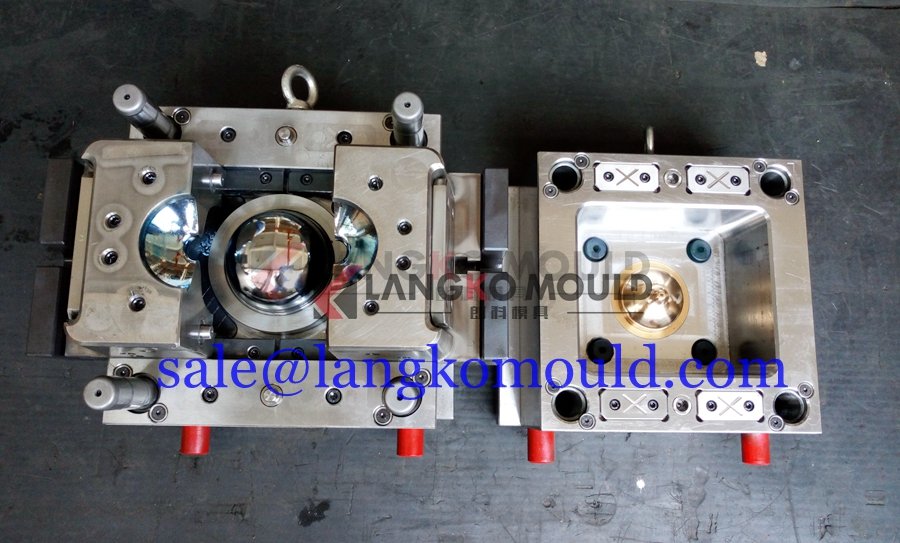

New shipped plastic ice cream cup mould, plastic ice cream cup injection mold.

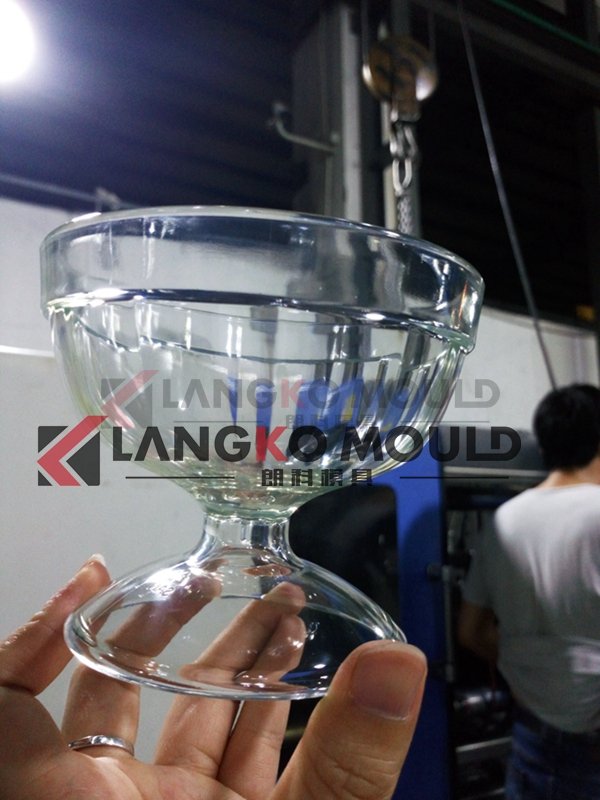

This ice cream cup dimension : upper ø100.7mm, bottom ø77.9mm, height 84mm;
Plastic material : SAN / AS, transparent plastic;
Mould base : DIN1.1730 ;
Cavity & Core steel : 718H steel with nitriding, Copper Be at the cavity side—for the ice cream cup bottom for better cooling;
Injection system : 1 tip hot runner;
Ejection system : 2 sliders moved by hydraulic cylinders, and ejected by stripper plate;
Surface treating : mirror polish
For transparent ice cream cup mould, during production, it is easy to have welding line problems, so need experienced engineer to adjust injection parameters. Need to dry the plastic material in temp. 75 degree for about 2 hours, if dry for not enough time, it is very easy to have air bubbles and silk marks on the ice cream cups; if dry too long time, the color of the material will turn a little yellow.
For transparent ice cream cups, the temperature of injection parameters are also very important, it’s better to connect a temperature controller for the ice cream cup mould cavity side.
If you want to know more about transparent ice cream cup mould injection speed, holding pressure, cooling cycle... informations, pls do not hesitate to contact with me : mould@langkomould.com, or my skype : linyuyouyi , we will share our experiences with you. LangKo Mould Co.,Ltd could supply you Plastic Ice Cream Cup injection mould, plastic ice cream cup molding, ice cream cup mould design, ice cream cups mass production, injection molding machines and one-stop-service for your projects.
